The KT148A sound chip is developed by Shenzhen Qingyue Electronics Co., Ltd. and is widely used in security, transportation, and other fields. The KT148A is a 32-bit DSP sound chip in a standard SOP8 package. It features a built-in 420KByte voice storage space, supporting a maximum voice length of 420 seconds, multi-segment voice playback, direct driving of a 0.5W speaker, and user-replaceable voice content.

Chinese Name: KT148A Sound Chip

Developer: Shenzhen Qingyue Electronics Co., Ltd.

Type: Voice Chip

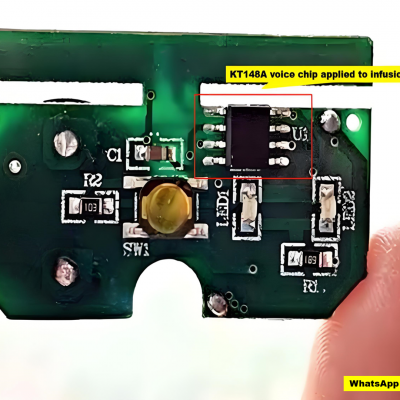

Applications: Security, transportation, and related fields

1. Product Overview

The KT148A is a 32-bit DSP voice chip in a standard SOP8 package. It has a built-in 420KByte voice storage space, supporting up to 420 seconds of audio, multi-segment playback, direct driving of a 0.5W speaker, and allows users to replace voice content.

2. Product Advantages

1. Cost Reduction & Reprogrammability: Improved manufacturing processes lower costs while allowing repeated firmware updates.

2. User-Replaceable Voice Content: Voices can be easily updated via a computer using a serial port.

3. Ample Storage Space: The chip provides sufficient memory for voice data.

3. Product Features

1. 32-bit DSP voice chip, 5MHz internal oscillator, PLL up to 120MHz.

2. Operating voltage: 2.0–5.5V (Note: Hardware adjustments are required for voltages below 3.3V).

3. Standby power consumption <25μA, with an ultra-low power mode of 1.5μA.

4. 16-bit PWM output, capable of directly driving an 8Ω/0.5W speaker.

5. Includes a tool for converting audio formats.

6. Supports 200 seconds at 16KHz or 400 seconds at 8KHz.

7. Voice content can be updated via a PC tool through a serial port.

8. Supports single-wire serial port control.

9. Supports up to 224 addressable segments.

10. Hardware I²C and UART interfaces.

11. Supports repeated firmware updates.

4. Hardware Specifications

The chip adopts a System-on-Chip (SoC) design, integrating a 16-bit MCU and a dedicated audio-decoding aDSP. It uses hardware decoding to ensure system stability and sound quality. The compact package size allows easy integration into other products.

5. Usage Notes

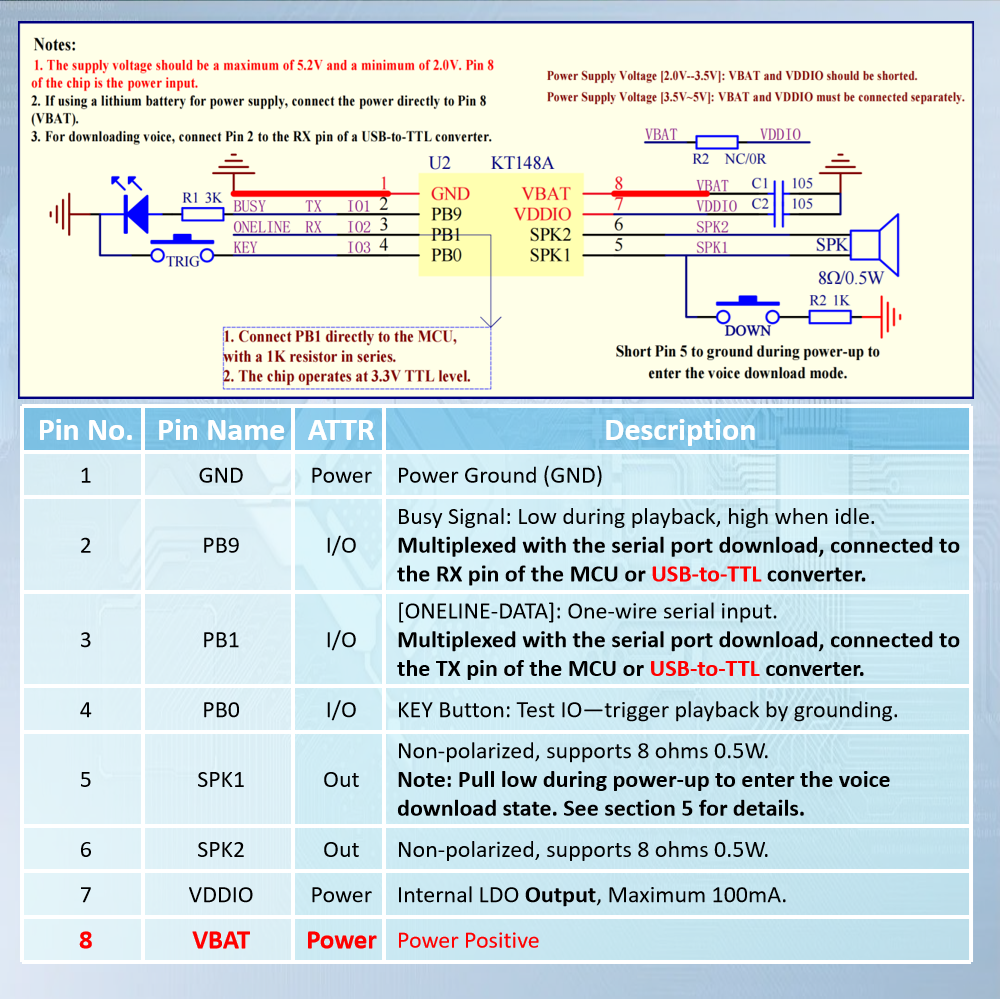

1. Power Supply Recommendations:

- A 5V power supply is recommended for higher speaker driving power and louder output.

- For lithium battery (3.3–4.2V) applications, connect the positive terminal directly to Pin 8.

- For dry battery applications, also connect the positive terminal directly to Pin 8.

- For ultra-low voltage (2–3V, e.g., coin cell) applications, short Pin 7 and Pin 8, then connect to the positive terminal.

6. Testing Instructions

The chip's Pin 4 is the test pin. Triggering it to ground (via a button or tweezers) will play the next voice segment.

After connecting the speaker and powering the chip, use Pin 4 to test playback by grounding it.
